Graphene Nanoribbons devices



Atomically precise, bottom-up-synthesized graphene nanoribbons (GNRs) have attracted strong interest from researchers worldwide as they constitute an emerging class of quantum designer materials, ideally suited for future electronic devices. Some of the major challenges towards their exploitation, however, is their reliable contacting due to their small size (<50 nm), as well as the preservation of their physical properties upon device integration.

Our recent experimental efforts in integrating GNRs in field-effect transistor devices use primarily graphene-based electrodes. Graphene, with its monoatomic thickness, allows the GNRs to be transferred on top of the electrodes, without introducing significant deformation and avoiding damage introduced by the deposition of metal electrodes.

The GNRs are synthesized and transferred onto the device substrate by the group of Prof. Roman Fasel at Empa. The GNR integrity and transfer quality are routinely investigated using polarization-dependent Raman spectroscopy. Here, we recently identified a longitudinal vibration mode in GNRs that allows extracting the length of the GNRs from the low-frequency Raman signature

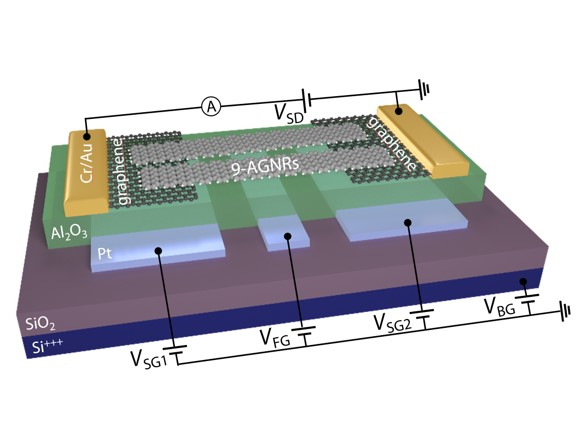

Depending on the specific devices needs, we have developed several procedures to fabricate the nanogap, either using the electrical breakdown method or using a combination of electron-beam lithography and reactive-ion etching. In addition, we have implemented different types of gates, with the most advanced ones being fingers as narrow as 10nm located directly below the GNR junction.

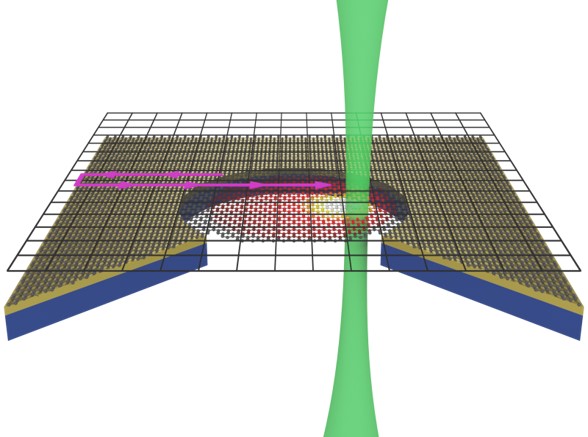

Besides electrical characterization, we also developed devices and measurement schemes for the thermoelectric characterization of GNRs for the extraction of the Seebeck coefficient and power factor.

In our pursuit for reliably contacting single GNRs, we also make use of carbon nanotube as electrode material.
