Bond making and bond breaking

The main objective of the group is to synthesize functional molecules which are used as additives for bulk polymers and are also used to modify the surfaces of organic and metal based materials.

Phosphorus based flame retardants with tailored physical and chemical properties are synthesized by activation of P-X bond. Such additives are not only environmentally friendly but also synthesized via sustainable routes. These additives can be scaled up in industry for commercial exploitation. The group has successfully demonstrated the suitability of such additives for application in fibers, PU foams and wood based materials.

/documents/56045/92242/Bond+Making+Hybrid+Flame/120cde36-27a2-4f38-8b20-8e613803c25e?t=1535445483517

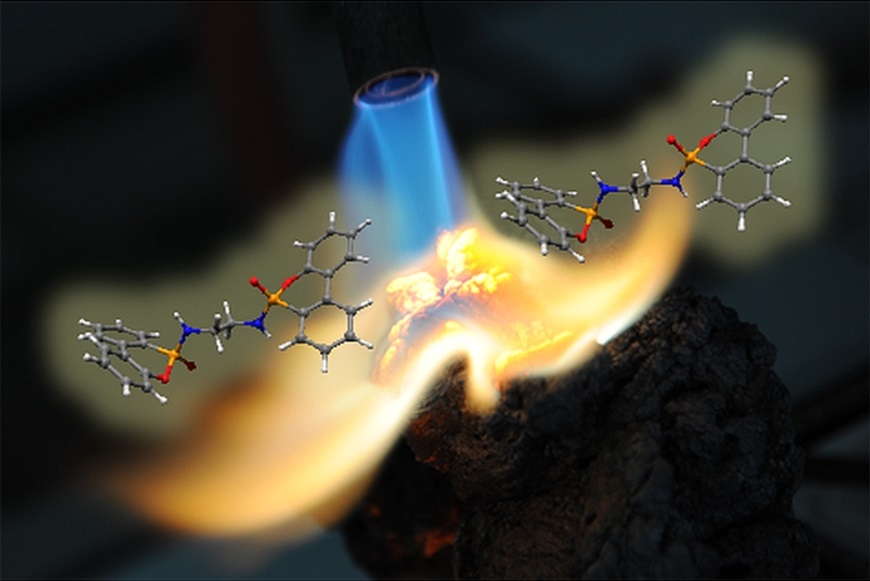

Hybrid Flame Retardant System in Flame, combining gas-phase and condensed phase action.

As part of fundamental research we ae currently studying the thermolysis mechanism of phosphorus based compounds by identifying transient gas phase active P based species.



Our research on metal surface modification involves studying the interaction of functional phosphorus compounds with aluminum so as to improve their adhesion to organic polymers and reduce their corrosion. Via this research we are able to synthesize novel phosphorus based multi-functional molecules which can bind to the metal and also crosslink by itself to form a network on the metal surface.

Phosphorus Containing ph and Solvent Responsive Smart Gels[1]
/documents/56045/0/Bond+Making+Bond+Braking+Bild+Gels+different+dyes+280Pixel/7b31a3b4-a65f-4811-bf08-848372375b7d?t=1535373724707

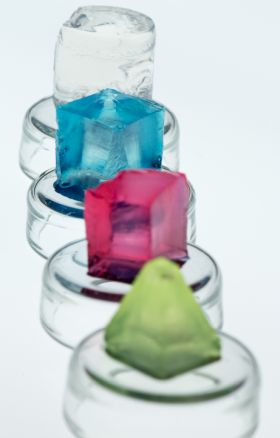

Gels after immersing in the different dyes.

Recently, water-insoluble and water-swellable gels are attracting an increasing interest in a wide range of biomedical applications such as in the pharmaceutical field as carriers for delivery of various drugs, peptides, and proteins. Their reversible swelling ability enables them to modulate the release behavior according to the external stimuli such as pH, temperature, ionic strength, electric field, or specific analyte concentration gradients. A number of methods have been developed for preparation of cross-linked polymeric gels, such as radicals initiation generated via thermal energy or the photo-cleavage of initiator molecules, and “Click” chemistry, but the applications of above methods are limited because of the toxicity of used catalyst or initiator and the complicated chemical synthesis makes them still a significant challenge.

Novel phosphine oxide based gels were synthesized by Michael addition reaction of TVPO and various nucleophiles in a single step synthesis process resulting in pH sensitive smart gels. Their structure and properties were characterized by SEM, Rheology, solid-state 13C and 31P NMR. Swelling and de-swelling behavior of the gels was studied in different environments (solvent, pH and temperature). The Gels were loaded with active molecules (dye and drugs) and their release behavior was investigated. Preliminary cytotoxicity studies of the gels were performed using an Amar blue assay. The data showed that there is no toxic material diffusing out of the Gel matrix.

/documents/56045/0/Bond+making+and+bond+breaking+Bild+Gels/1fbe4491-0a02-4aa1-bb1e-dd977a36c3d7?t=1592202356837

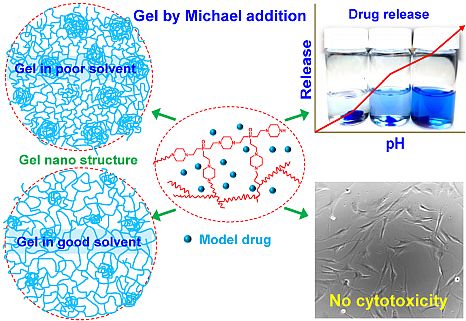

Phosphine oxide based gels and their application

[1] ACS Appl. Mater. Interfaces 2020, 12, 6, 7639–7649, https://doi.org/10.1021/acsami.9b22808

Advanced Polymeric Coatings and Nano-materials
In the era of sustainability, considerable efforts are devoted to prolong the life span of different polymeric products. Increasing outdoor application of polymeric prod-uct expose them to damage caused by weathering and abrasion. Additionally, changing environmental condition and demanding application requirements poses significant challenges for development of such coatings with commercial viability. In our group we work on development of functional coatings for protection against weathering and abrasion. We develop these functional coatings by addition of dif-ferent organic and inorganic nano materials in various acrylate based co-polymers. More recently we are working with our research partner to develop UV resistant coating by incorporation of bio-based additives.
We are also focused on development of functional silica nanoparticles (SiO2 NPs) for removal of metal contamination from water. Such SiO2 NPs are synthesized by using phosphorous based multifunctional ligands. During nanoparticle synthesis some of the functional groups in the ligand can undergo condensation with TEOS (Tetraethyl orthosilicate) and rest functional groups are transformed in to phosphonic acid. This allows us to achieve permanent phosphonic acid functionality in the SiO2 NPs.
/documents/56045/0/Bond+Making+Bond+Breaking+TEOS/6d73ff31-6e73-4fd7-9dca-e1d3edcd3390?t=1535439084927

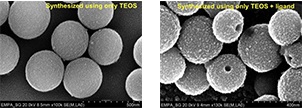

SEM images of SiO2 NPs synthesized using only TEOS and TEOS along with phosphorous base ligand.










Master Thesis Openings

Are you a motivated master student and looking for opportunities to challenge and strengthen skills in

Polymer, organic and Material chemistry? Are you eager to do a master-project, while gaining valuable experience in a research project for industrial needs? The following projects are offered on immediate basis.

  1. Flame retardant coatings for transportation textiles

This project will address development of new flame retardant coatings for textiles such as seat covers and carpets, which are used in aircrafts and railways. New flame retardant molecules based on phosphorus , sulfur, silicon and nitrogen will be synthesized and formulated with PU, EVA and Acrylate based resins and applied via back coatings on the carpets and seat textiles.

  1. Fire safe high partially aromatic polyamides

Partially aromatic polyamides (PAP) are increasingly used in development of materials for e-mobility. PAP offer very high level of thermal stability much needed in such applications however, they are flammable and need to be protected against fire. In this project, PAP will be modified via incorporation of novel thermally stable flame retardant additives via melt extrusion process and its thermal and fire performance will be evaluated.

  1. Flame retardant co-polyamides with heteroatoms in the backbone

 The project involves synthesis of co-monomers with heteroatoms (B, Si, P and/or S) followed by preparation partially aromatic flame-retardant (FR) polyamides. You will also learn modern techniques for FR polymer characterization, while working in a professional and dynamic research group. Your competence in solid-state polymerization process is the basis for your success.

For details, please contact:

Dr. Sabyasachi Gaan
Group Leader (Additives & Chemistry)
Advanced Fibres
Empa
Swiss Federal Laboratories for Materials Science and Technology
