Structure analysis on single crystals (SC-XRD), textured / oriented materials (WAXS)


  • Single crystals: 3D molecular structure solution for new materials
  • Textured materials: ordering, molecular arrangements

Structural parameters:

  • 3D molecular structure (atomic positions, bond distances & angles, intermolecular interactions
  • Ordering & molecular arrangements


  • 3D X-ray data collection for single crystals
  • Diffraction imaging for textured or partially ordered & oriented systems
  • Evaluation of multi-phase systems

Working principle:

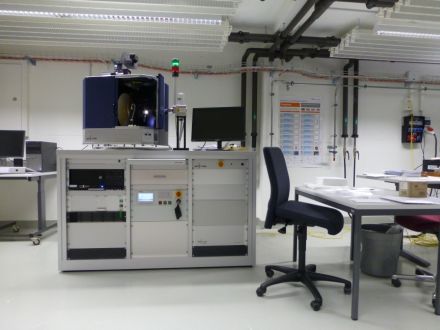

With the Stoe IPDS-II diffractometer, 3D data for single crystals can be collected wih the aim to determine new molecular structures. The instrument works in transmission mode and is equipped with an imaging plate detector for fast measurements. At the same time it allows to work on preferred orientation, ordering of more complex systems and nano-crystalline materials. Come to us for the discussion of your analytical question. We will support you in conducting the adequate experiment.
