Flexo Printing

Flexo printing is a widely-used printing technique in packaging mass production. It utilizes relief elements on a flexible printing plate or cylinder to transfer the ink to the substrate. It is essentially a modern letterpress.
/documents/147354/601833/Flexo_Scheme_570px.jpg/a4f49bae-9dee-4d8b-b3a1-5c9dd9a731b8?t=1465983186200

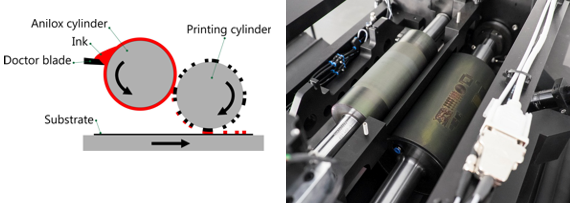

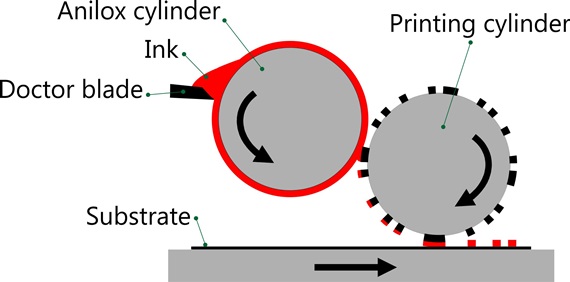

Schematic of the Flexo printing process

Key features

  • Relief elements on a flexible printing plate can print on nearly any type of substrate
  • High variety of low viscosity inks can be used (UV, solvent, waterbased etc.)
  • Anilox roller made of chrome/ceramic
  • Web speed ≤ 80 m/min
  • Mass-printing technique
  • Resolution ≥ 150 dpi, ≤ 20μm
  • Film thickness 0.8 – 3 μm
/documents/147354/601833/160310_209_CCC_008_570px.jpg/a32041e7-2c84-43c4-bead-673cf995d1c7?t=1465983185747

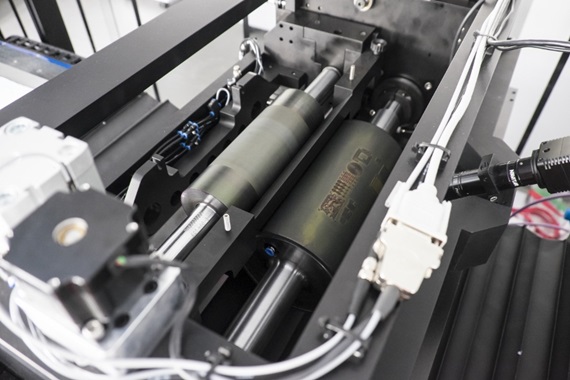

Flexo print unit on the C600
