Cellutronic - The circuit board of the future
The Matura thesis documents a concept for replacing a glass-fiber-reinforced epoxy resin, which is used as a carrier material in printed circuit boards (PCBs), with sustainable cellulose. "Cellutronics" in this context represents a combination of cellulose and electronics, an association that is currently found only occasionally in this form. Two types of cellulose structures, microfibrillated cellulose and bacterial cellulose, were obtained and processed into circuit boards. Thus, an electronic circuit, an astable multivibrator, was realized on the substrate materials. The electronic circuit with a conventional glass fiber reinforced epoxy resin served as a reference. Experiments were conducted on the biodegradability of the carrier materials and the recovery of the non-decomposable components of the circuit boards by swelling the carrier materials in water. It was shown that cellulose is an optimal equivalent to the glass fiber reinforced epoxy resin.
Christine Geiger, Cantonal School Zürich Nord
- Geiger C.K., Cellutronic - The circuit board of the future, maturity graduation work, Cantonal School Zürich Nord (2021)
- Geiger, T.; Geiger, C.K.; Hoffmann, K.G.; Nyström, G., Printed circuit boards from cellulose fibrils, poster presentation, 20th European Conference on Composite Materials (ECCM20), Lausanne, Switzerland, June 26-30, 2022
- Geiger, T.; Geiger, C.K.; Hoffmann, K.G.; Nyström, G., Printed circuit boards from cellulose fibrils, In: Vassilopoulos, A. Proceedings of the 20th European Conference on Composite Materials - Composites Meet Sustainability (Vol 1-6); Vassilopoulos, A., Michaud, V., Eds.; Composite Construction Laboratory, 2022. https://doi.org/10.5075/epfl-298799_978-2-9701614-0-0, p. 1458
Hochfeste Platten aus industriell hergestellter Bakteriencellulose – ein alternatives Basismaterial für Platinen?
Oral presentation, Coffee Lectures: Polymers for the Future (OST), 12.10.2022, online
Circuit boards from renewable raw materials, Empa News 25.04.2023

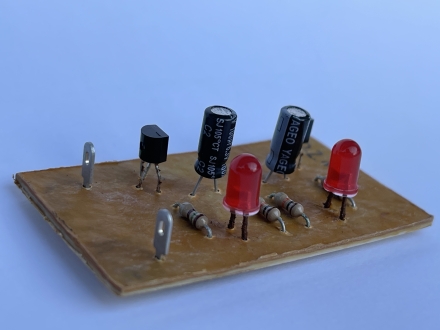

Printed circuited board with cellulose substrate
