Controllability

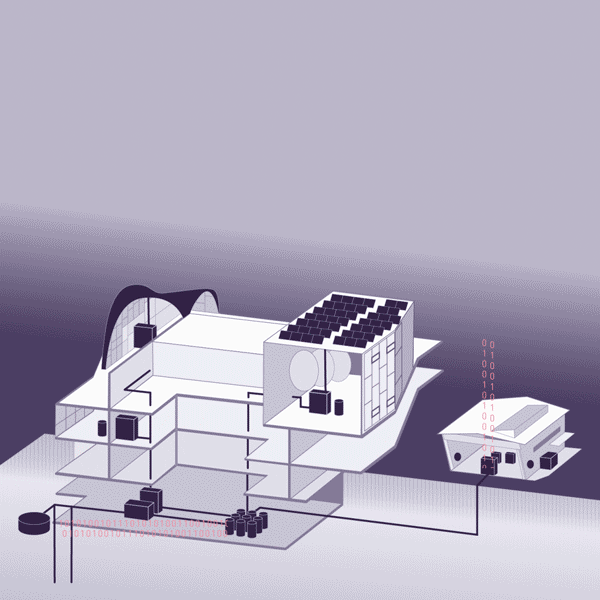

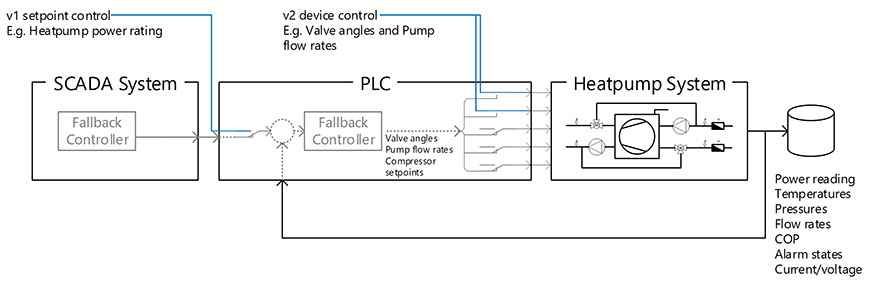

The installed infrastructure is in daily operation. If no research project is going on, a "fallback" controller is active. Other project based controllers/mode of operations/experiments can influence the system in two ways:

v1 setpoint control i.e.: The fallback controller stays active. It receives setpoints from an experiment and not the conventional Empa SCADA system.

v2 device control i.e.: The fallback controller stays active, but does not write values to its output. The experiment outputs will be put to the system.

A combination of v1 and v2 is possible.

/documents/147167/7077725/controllability.jpg/0a3887b8-56f3-4e7c-83ce-51a7bd0dc422?t=1552922600260
Every indicated switch is operated by the ehub Team (Empa), in coordination with interested researchers. The indicated heat pump system serves as an example. The same methodology applies to other controllable infrastructure. A list of controllable infrastructure can be found bellow.
SolAce
/documents/147167/7103300/solace.jpg/019b2f32-978d-46ae-8004-b10777d7f316?t=1552923853557

v1 setpoint control
Room temperature [°C] per room 4x
Ventilation air flow [0,33,66,100]% 4x
Temperature per floor/ceiling heating/cooling [°C]

v2 device control
Lighting intensity [0..100]%
Low temperature pumps and mixing valves [0...100]%
Medium temperature pumps and mixing valves [0...100]%
High temperature production [0..100]%
Shading, position [0..100]% 4x
Shading, angle [0..100]% 1x
PV-Inverter 2.13kWp power control [0..100]%,[0..100]% P,Q P_max=f(Irrad)., Q_max=f(P_max)

To the SolAce unit website

Vision Wood
/documents/147167/7103300/vw.jpg/79e397f4-4e6e-4d48-a82a-c820b69ddd30?t=1552924986544

v1 setpoint control
Room temperature [°C] per room 4x
Ventilation air flow [0,33,66,100]% 4x
Shading, [up/down] 6x

v2 device control
Low temperature supply valve [0...100]%
Medium temperature supply valve [0...100]%
Heating/cooling system fluid temperature [°C]

To the Vision Wood unit website

Meet2Create
/documents/147167/7103300/m2c.jpg/0c0caca8-6cdb-4006-9cb9-92ecd53d4acc?t=1552924985663

v1 setpoint control
Ventilation air flow [0..100]% 4x
Heating system fluid temperature [°C] 2x
Shading, [0,25,50,75,100]%
Temperature per floor/ceiling heating/cooling [°C] 15x

v2 device control
Heating system fluid temperature [°C]
Low temperature supply valve [0...100]%
Medium temperature supply valve [0...100]%

To the Meet2Create unit website

Solar Fitness & Wellness
/documents/147167/7103300/sfw.jpg/f826a6fa-a139-480f-ab90-4f1b283d5005?t=1552924986049

v1 setpoint control
Sauna reservation [lead time] 3x
Ventilation air quality set point [ppm] 1x
Room temperature ventilation [°C] 1x
Room temperature heating [°C] 3x
Window [open/close]

v2 device control
Lighting color and intensity [various]
Air flow ventilation [0..100]%
mixing valves [0...100]%
radiator valve [0..100]%
Heating system fluid temperature [°C]
PV-Inverter 24.7kWp power control [0..100]%,[0..100]% P,Q P_max=f(Irrad)., Q_max=f(P_max)

To the Solar Fitness & Wellness unit website

Urban Mining & Recycling
/documents/147167/7103300/umar.jpg/d6fdec60-7850-4e5c-a9d3-c656348d583e?t=1552924986429

v1 setpoint control
Room temperature [°C] per room 4x
Ventilation air quality [ppm] 1x

v2 device control
Low temperature pumps and mixing valves [0...100]%
Medium temperature pumps and mixing valves [0...100]%
High temperature production [0..100]%
Heating system fluid temperature [°C]
Ventilation air valve in/out [0..100%]

To the Urban Mining & Recycling unit website

DFAB HOUSE
/documents/147167/7103300/dfab.jpg/1b8c3163-f3bc-4779-a0db-6e4b4eefc77e?t=1552924985166

v1 setpoint control
Room temperature [°C] per room 4x

v2 device control
Low temperature pumps and mixing valves [0...100]%
medium temperature pumps and mixing valves [0...100]%
Heatpump [On/Off]
Ventilation air flow [0..100]% 1x
PV-Inverter 9kWp power control [0..100]%,[0..100]% P,Q P_max=f(Irrad)., Q_max=f(P_max)

To the DFAB HOUSE unit website

NEST Backbone
/documents/147167/7103300/backbone.jpg/a3544269-10d8-4761-98f4-068b702230de?t=1552924985001

v1 setpoint control
Room temperature [°C] per room
Ventilation per room 12x
Lighting per room 12x
Shading [up/down] 5x

v2 device control

Thermal Production High Temperature Heat Pump
/documents/147167/7103300/ht_heatpump.jpg/2b8afa4d-0a8d-4c51-8387-1cd1c291de4b?t=1552924985544

v1 setpoint control
Thermal power output 2x3.1kW_el [0;50;100]%
Max thermal output 28kW

v2 device control
Heat pump compressor setpoint 2x3.1kW_el [0;50;100]%
Valve angles [0..100]%
Pump flow rates [0..100]%

Thermal Production Low Temperature Heat Pump
/documents/147167/7103300/nt_heatpump.jpg/9d9a38b4-acc7-4f7c-b201-3d236c964f89?t=1552924985925

v1 setpoint control
Thermal power output 2x12kW_el[0,20..100]%
Max thermal output 100kW

v2 device control
Heat pump compressor setpoint 2x12kW_el [0,20..100]%
Valve angles [0..100]%
Pump flow rates [0..100]%

Thermal Production Fuel Cell
/documents/147167/7103300/fuelcell.jpg/2348d0dd-51f5-4ca4-965f-9cbfd7434327?t=1552924985417

v1 setpoint control
Fuel cell thermal output [0;2;20;22]kW_th

v2 device control

Thermal Storage
/documents/147167/7103300/th_storage.jpg/539d14c9-6443-497e-9349-66f618d610aa?t=1552924986310

2x ground heat exchanger; each 260m; each 14.6kW charge and 9.7kW discharge
1x 12m thermpipe; 7kW charge and 4.7kW discharge
1x 69m3 ice storage; 20kW charge and 30kW discharge

v1 setpoint control
-

v2 – device control
Valve angles [0..100]%
Pump flow rates [0..100]%

Electrical Storage
/documents/147167/7103300/e_storage.jpg/5b55a8b8-f8e7-4420-9fa1-878a363d3eaa?t=1552924985294

v1 setpoint control
Battery NMC-g 100kWh, 280kVA [-230..230]kW,[-280..280]kvar P,Q
Scap 0.7kWh, 100kVA [-70..70]kW,[-100..100]kvar P,Q

v2 device control

Thermal Distribution
/documents/147167/7103300/th_distribution.jpg/55bc4728-ad91-4cd3-aa8c-f436aedb7032?t=1552924986182

v1 setpoint control

v2 device control
High temperature, Medium temperature  and Low temperature:
pumps and mixing valves [0..100]%

move
/documents/147167/7103300/move.jpg/ab4bceb2-f29b-4a82-aec4-a9809c82ed5a?t=1552924985797

v1 setpoint control
PV-Inverter 130kWp power control [0..100]%,[0..100]% P,Q P_max=f(Irrad), Q_max=f(P_max)
Electrolyser release [on/off]
Compressor [on/off]
Fuel station release [on/off] 2x

v2 device control
Electrolyser [0..100]%
900bar Compressor rps [Hz]

To the move website

.
