Timber Structures

Research projects on timber structures carried out at the Structural Engineering Research Laboratory aim at improving the reliability and competitiveness of timber structures with a key focus on serviceability, ultimate resistance and deformation capacity. In addition to solid timber, all kinds of engineered wood products are investigated, including hybrids of different wood species as well as combinations of timber with concrete, steel and fibre-reinforced composites. As key components of timber structures, connections are also a research focus. Currently ongoing projects focus on:
  • Lateral load-resisting systems (wind, earthquake) of multi-story light-frame timber buildings
  • High-performing composite elements, resulting from combinations of timber with concrete, steel and fibre-reinforced composites
  • Development of new hardwood products and connection systems
  • Development of structural design codes on national and European levels
Earthquake resistant timber structures for multi-story buildings
/documents/55961/4073567/Research_4_1_Timber_Engineering_P1.png/66172213-e0d1-47ac-9353-c96cbd2f12dd?t=1526386349180

The project focused on the behavior of joints and wall elements in multi-story wooden structures during moderate earthquakes and strong winds. Using a deformation-based design method, the structure was optimized for low to medium seismicity and moderate wind action prevailing in Switzerland. Experiments were performed on OSB-sheathed light-frame timber shear walls subjected to quasi-static monotonic and cyclic loading, with simultaneously acting vertical force and bending moment, and numerical simulations were set up for parametric studies. Adapted loading protocols for cyclical tests of joints and wall elements were developed. Compared to protocols for areas with high seismicity, these protocols include fewer load cycles and smaller cumulative damage demands. This opens the door for more competitive solutions in areas with low to medium seismicity. By means of a parametric study on single-degree of freedom systems, new relationships between behavior factor and ductility were established. This makes it possible to apply the N2 method according to Eurocode 8 to light-frame timber structures.

Funding: Swiss National Science Foundation SNSF, National Research Program NRP 66
Project Partners: EPFL, Earthquake Engineering and Structural Dynamics Laboratory; heig-VD; Pirmin Jung Ingenieure AG; Artho Holz- und Elementbau AG; Lignum – Holzwirtschaft Schweiz; Wenk Erdbebeningenieurwesen und Baudynamik GmbH
Contact: René Steiger

On-site assessment of actual dynamic properties of a multi-story light-frame timber building
/documents/55961/4073567/Research_4_2_Timber_Engineering_P2.jpg/21d6336c-86d2-4b04-bd86-0e4741c92f72?t=1526386349263
A 3-story building with OSB-sheathed light-frame timber walls and timber-concrete composite slabs was subjected to dynamic excitation. The experiments consisted of measurements of the accelerations resulting from forced horizontal vibrations excited by means of a hydraulic actuator shaking a mass of 940 kg. The building was excited in its two main directions to vibrations within a frequency range of 0.2 to 14 Hz. Natural frequencies, modal damping ratios and mode shapes of the building were estimated using accelerations measured in the 4 outer corners of each upper floor. For increasing displacement amplitude (1/8000 to 0.7 mm) the natural frequencies decreased moderately (-15 %) whereas the modal damping ratios increased significantly (+100 %). Modal damping ratios computed using ambient vibration data were smaller than those obtained from forced vibration tests, which suggests that modal damping for the levels of vibration in interest in design might be significantly underestimated if based on ambient vibration testing. However, the mode shapes computed using ambient vibration data turned out to be reliable.

Funding: Federal Office for the Environment FOEN (Fonds zur Förderung der Wald- und Holzforschung)
Project Partners: Pirmin Jung Ingenieure AG; Artho Holz- und Elementbau AG; Zindel Brönnimann Ferrario ZBF Architekten AG; Ferrario Bau AG
Contact: René Steiger
Friction effects between components of light-frame timber shear walls
/documents/55961/4073567/Research_4_3_Timber_Engineering_P3.jpg/5448d3a1-522c-4b81-99be-10692b811442?t=1526386349367

Experimental investigations on friction properties between parts of light-frame timber shear walls were carried out, namely between adjacent sheathing panels made of Oriented Strand Board (OSB) and between OSB panels and glued laminated timber (GLT) frame members. The friction stresses were evaluated for different levels of compressive stress and different loading rates in monotonic and cyclic tests. The test results confirmed that the static friction coefficients are larger and have a larger variability than the kinetic friction coefficients. The friction coefficients between the GLT frame members and the OSB panels were in general smaller than the friction coefficients between the sheathing panels themselves. The tests showed that the friction coefficients decrease with increasing cumulative sliding displacement. Analysis of the contact surface before and after the shear test indicated that the sliding reduces the height of the asperities of the contact surfaces. However, after a cumulative displacement of about 100 mm the friction coefficients remain approximately constant.

Funding: Swiss National Science Foundation SNSF, National Research Program NRP 66
Project Partners: EPFL, Earthquake Engineering and Structural Dynamics Laboratory; Empa Lab Transport at Nanoscale Interfaces
Contact: René Steiger



Glued laminated timber made of European beech wood
/documents/55961/4073567/Research_4_4_Timber_Engineering_P4_a.jpg/71819ee1-4fb4-46e9-b9aa-f89184dcd329?t=1526386349467

This project is aimed at promoting the use of beech wood for the production of glued-laminated timber of strength classes GL40, GL48 and GL55. Main prerequisites for the design of structural elements (preferably beams and columns in service class 1) are appropriate production technologies, quality control of raw material and final product, as well as knowledge of mechanical properties (bending and shear stiffness and strength, tension and compression strength parallel to the grain, compression strength perpendicular to the grain). Starting from the raw material supply (origin, sawing pattern, drying process, strength grading) all further steps in production (finger jointing, surface gluing of lamellas) as well as the properties (strength and stiffness) of the final product are investigated.

Funding: Federal Office for the Environment FOEN (Aktionsplan Holz)
Project Partners: ETH Zürich, Institute of Structural Engineering IBK; Bern University of Applied Sciences; neue Holzbau AG; Corbat Holding SA; Richard Lötscher AG; Konrad Keller AG; Koller Sägerei AG; Holzindustrie Schweiz
Involved staff: René Steiger, Thomas Ehrhart



Slabs made of cross-laminated timber panels in composite action with non-reinforced concrete
/documents/55961/4073567/Research_4_5_Timber_Engineering_P5.jpg/f8da81d2-3ffe-4c42-ba65-b9a12a2d0658?t=1526386349560
The project’s aim was to investigate and further develop a slab system consisting of a composite cross-laminated timber / concrete cross-section. The concrete plate has no rebars and the cross-lam panel acts simultaneously as formwork and as tensile reinforcement. Strength, stiffness and failure modes of beam-type elements were investigated in short-term and long-term bending tests. Number, positioning and shape of the shear connectors guaranteeing a rigid connection between cross-lam panel and concrete slab were optimized, taking into account not only stresses when subjected to varying levels of bending moment but also from changes in moisture and from long-term effects as creep and shrinkage.

Funding: Federal Office for the Environment FOEN (Fonds zur Förderung der Wald- und Holzforschung)
Project Partners: Pius Schuler AG, Schilliger Holzindustrie AG
Contact: René Steiger
Structural behaviour and reliability of connections in timber structures
/documents/55961/4073567/Research_4_6_Timber_Engineering_P6.png/5e3c31c7-f619-43a1-a611-c79890d419d4?t=1526386349657
The aim of this research project is to study the global behavior and reliability of timber structures, taking into the account the behaviour and reliability of its members and connections. The project will focus only on high performance structures, namely trussed structures, with connections with dowel-type steel fasteners under static loading. The study will be conducted at the connection scale and the system scale and will assess what the connections should fulfil to assure certain reliability and robustness requirements. The main output of the proposed project is the development of system-based design concepts for timber structures, where the performance of the structure is evaluated considering the load-deformation behaviour and the reliability of its members and connections.

Funding: Swiss National Science Foundation SNSF
Project Partners: ETH Zürich, Institute of Structural Engineering IBK
Contact: Pedro Palma

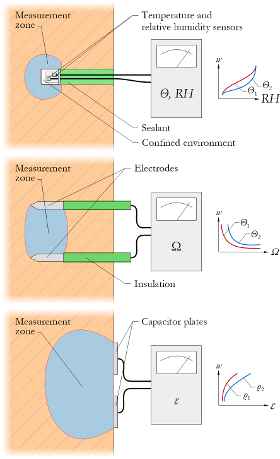

Structural health monitoring of timber structures
/documents/55961/4073567/Research_4_7_Timber_Engineering_P7.png/c3632d7b-91e2-41d7-b502-e79d189af533?t=1526386349733
The aim of this project is to give an overview of available structural health monitoring (SHM) strategies for timber structures and describe the used methods and technologies. Monitoring strategies will be analysed taking into account specific aspects of the behaviour of timber structures (e.g. anisotropy, high variability, moisture and temperature dependency, low stiffness, duration of load effects, and creep). The operational aspects of the monitoring strategies (what is monitored and how the monitoring is carried out), and data acquisition aspects (excitation methods, sensor type, number and locations, and the data acquisition, transmission, and storage equipment) will also be analysed.

Funding: Federal Office for the Environment FOEN (Fonds zur Förderung der Wald- und Holzforschung)
Project Partners: Schilliger Holzindustrie AG
Contact: Pedro Palma
