Gravure Printing

Gravure printing is a widely-used high quality, fast speed printing technique e.g. for magazine printing. It utilizes engraved cells on a printing plate or cylinder to transfer the ink to the substrate.

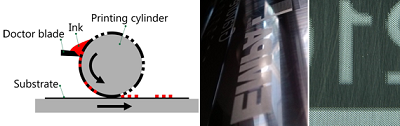

Schematic of the Gravure printing process and Photograph (left) and microscopic image (right) of engraved cells

/documents/55926/76815/gravureExamples.png/3505121e-009b-4c68-ad44-01baaea7a52f?t=1586244047744

Key features

  • Engraved elements on gravure cylinder.
  • Mass-printing technique
  • High variety of low viscosity inks can be used (UV, solvent, waterbased etc.)
  • Web speed ≤ 100 m/min
  • Resolution ≤ 355 dpi, ≥ 10μm
  • Film thickness: 0.02 – 8 μm

Empa's gravure cylinder is specially designed for printing very fine details and structures required for printed electronics (down to 9 Micrometer). It is also has the capability to print very thin layers of functional inks.

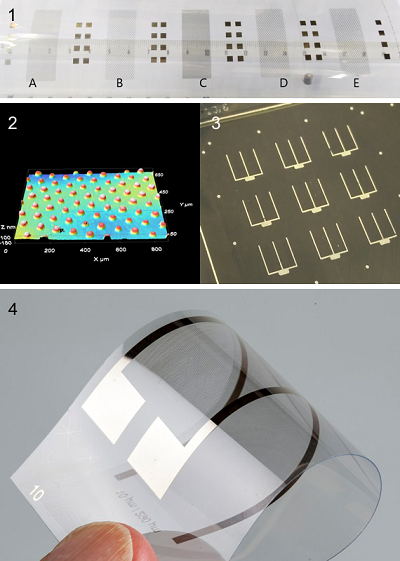

1 Printed Ag grids for use as transparent electrodes (https://doi.org/10.1007/s00170-019-03835-7).

2 Printed dot structure of polymeric material on PET foil.

3 Printed Ag current collector on CIGS solar cells.

4 Flexible and transparent electrode: A gravure printed conductive Silver grid and busbar on PET foil.

/documents/55926/76815/AgLED.png/d68ca1a2-5bd2-4251-ba8f-e428f06a2ce0?t=1586244047346

Circuit with a glue-bonded SMD-LED to prove conductivity
of the gravure printed nano-silver ink

/documents/55926/76815/Labratester.png/b06df089-5497-426b-9ce8-65d031b9466a?t=1586244047892

Labratester

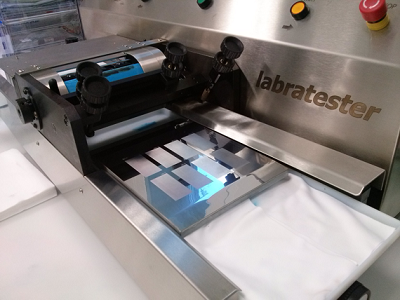

The CCC is also home to a small lab gravure printer for ink testing on flexible A5-sized substrates. Here, gravure plates are used, which allow a very fast workflow. A gravure plate with various cell parameters (e.g. depth, size) as well as a gravure plate with very fine structures are available.
