For domestic hot water and space heating an air source to air heat pump is installed, serving as heating unit and ventilation. The heat pump has a normal power consumption of 285 W and a thermal output of 970 W resulting in a coefficient of performance (COP) of 3.4. A domestic water storage tank with a volume of 200 litres is directly included in the heat pump unit.

/documents/146981/227147/WP_24.07.2014.JPG/601bcf39-3b3a-4ad7-a5de-ec051c4a6989?t=1448544154280

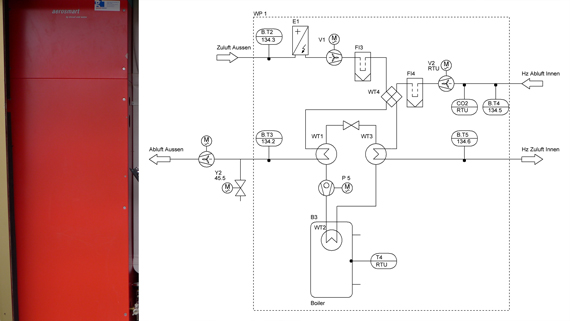

SELF heat pump and air ventilator. Schematics of the heat pump operation.
Heat pump operation

In the heat pump process the domestic hot water is initially heated followed by the heating of incoming fresh air. The heat pump incorporates an out bound air to fresh incoming air heat exchanger in order to improve efficiency.

Grid

230 VAC / 50 Hz

Nominal air quantity

120 m3/h

Power consumption ventilation (max.)

100 W

Normal power consumption heat pump

285 W

Thermal power output

970 W

COP

3.4

Noise (housing)

45 dB(A)

Noise (air connection)

37 dB(A)

Noise (exhaust air connection)

48 dB (A)

Refrigerant

R134a

/documents/146981/340088/drexler_weiss.jpg/e0c526bb-b006-4be2-bfd4-89949251d449?t=1448621891390

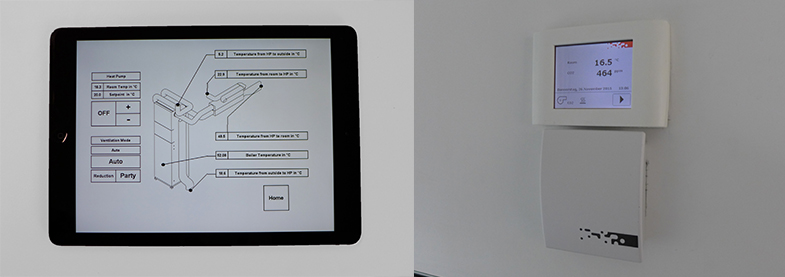

Temperature and CO2 sensor from drexel und weiss with the visualisation on the tablet
