High Temperature Integrity Group

The research in high temperature integrity group (HTIG) combines expertise in materials science, mechanical engineering and machine learning and includes the following three main applications:

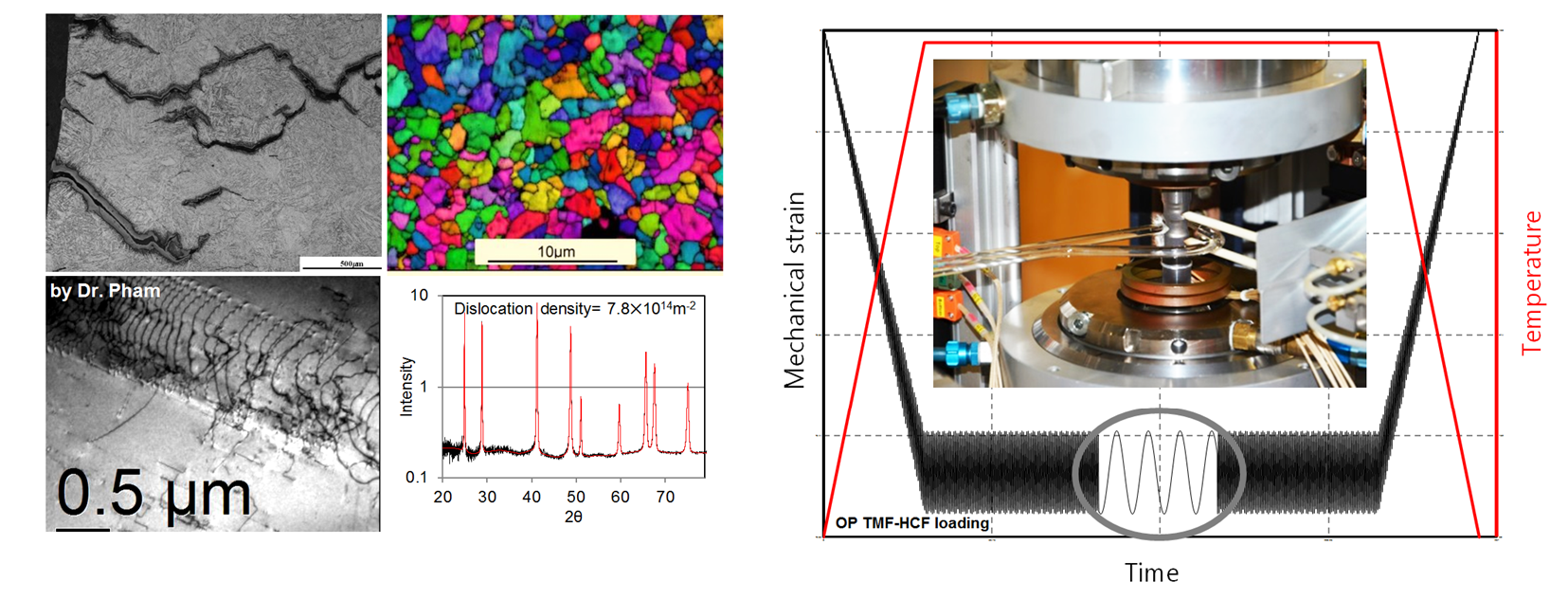

Mechanical Integrity Assessment of Conventional and Advanced Materials

  • Characterisation of the mechanical response of materials (deformation and damage behaviour, creep/fatigue/thermomechanical fatigue, ambient and elevated temperatures, conventional and AM alloys)
  • Material microstructure characterisation (pre- and post-test inspection)
  • Understanding the correlation between material’s microstructure and its mechanical response
  • Development of material constitutive models for deformation/damage and implementation into FEA



References
- Li, et al. "In-situ and ex-situ microstructure studies and dislocation-based modelling for primary creep regeneration response of 316H stainless steel." Acta Materialia 216 (2021): 117130.
- Hosseini and Popovich. "A review of mechanical properties of additively manufactured Inconel 718." Additive Manufacturing 30 (2019): 100877.
- Hosseini, et al. "Effect of prior deformation on the subsequent creep and anelastic recovery behaviour of an advanced martensitic steel." Materials Science and Engineering: A 717 (2018): 68-77.

Simulation for Metal Additive Manufacturing

  • Continuum-based thermal FE modelling of LPBF and DLMD processes
  • High and low fidelity thermomechanical simulation for residual stress and distortion analysis
  • Cellular automata microstructure modelling for AM alloys
  • Deploying machine learning for multi-physical fields simulation of metal AM



References
- Ghanbari, Mazza and Hosseini. "Adaptive local-global multiscale approach for thermal simulation of the selective laser melting process." Additive Manufacturing 36 (2020): 101518.
- Hosseini, et al. "Deploying artificial intelligence for component-scale multi-physical field simulation of metal additive manufacturing." Industrializing Additive Manufacturing (2020): 268-276.



Modelling and Machine Learning for Manufacturing Systems (Industry 4.0)

  • Digital Twins, advanced analytics, machine learning and simulation
  • Process control and optimisation, predictive maintenance, smart manufacturing
  • Support of enterprises, particularly SMEs, for digitalization (Industrie 2025)



Reference
- Hosseini, Industry 4.0 for Manufacturing, 2021 (PDF).


Ongoing PhD Projects

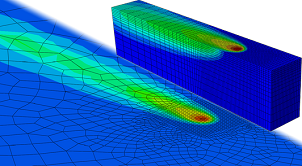

Machine Learning for Multiscale Thermal Simulation of Additive Manufacturing

/documents/55982/19902230/PooriyaProject.png/cfb180fc-2d2d-49da-bad8-432995c7efa3?t=1643379865717

Understanding the evolution of temperature profiles during the metal additive manufacturing process is the first step towards investigating the development of residual stresses, microstructure, and properties of the manufactured components. Thus, reliable thermal simulations are essential in studying the MAM process, where efficient models with minimal uncertainties would act as the input to sequentially coupled mechanical and microstructural analyses.
The fast kinetics and highly localized nature of the phenomena involving melting and solidification of metal powder demand fine time and space discretization for solving the heat transfer equations around the high-intensity localized heat source (e.g. laser). This requirement significantly increases the computational costs and makes part-scale calculations prohibitively expensive. Existing simplified simulation approaches apply gross approximations to overcome the numerical cost barrier and introduce high levels of uncertainty that ignores important process details. This project combines multiscale modelling and machine learning to enable part-scale high fidelity simulations and fast thermal analysis without compromising accuracy.  The efficiency and reliability of the proposed idea have been demonstrated for 2D thermal simulations  [1,2]. This project is running in collaboration with Risk, Safety and Uncertainty Quantification and Seminar for Applied Mathematics from ETHZ.

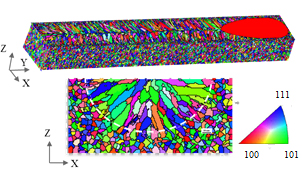

Microstructure and Mechanical Property Prediction for Laser Powder Bed Fusion Process

/documents/55982/19902230/JianProject.png/3913a227-6d30-4e0b-a347-45b05f544d63?t=1643379852458

It is widely acknowledged that the microstructure of additively manufactured builds is considerably different to those observed in the cast or wrought alloys. AM microstructure is characterized by fine-elongated grains oriented in the build direction. Accordingly, anisotropic high strengths at room temperature and low creep performance at elevated temperatures were often observed for AM alloys. Parameters such as grain size, shape, crystallographic orientation and consequently, the mechanical properties were found to be very sensitive to the AM process parameters and therefore tuning the process conditions allows for the fabrication of builds with desired properties. Notably, the adoption of process conditions for different sites of a part enables the fabrication of functionally graded microstructures.

Full exploitation of the AM process potentials for designing the microstructure requires a deep understanding of microstructure development during the deposition process and its relationship with the resulted mechanical properties (i.e. process-microstructure-property correlation).  The running PhD project, in collaboration with the Computational Mechanics Group at ETH aims to develop a cellular automata-crystal plasticity finite element simulation framework for microstructure and mechanical properties simulation for AM process. Moderating the computational cost of such a detailed analysis through machine learning is planned.

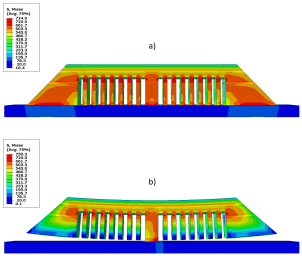

Machine Learning for Multiscale Simulations of Residual Stresses and Distortion in Laser Powder Bed Additive Manufacturing

/documents/55982/19902230/VonPatrik%2B2.png/5ee437bd-6a9f-4d40-9e6e-f435503ae519?t=1643380478560

While additive manufacturing enables the production of functionally graded materials and complex topologies, its employment to fabricate ready-to-use components is often inhibited by the induced distortions and residual stresses. Steep temperature gradients and high cooling rates are involved during the process upon localised heat input. The resulted thermal strains induce inhomogeneously distributed plastic deformation, and thus residual stresses that can cause distortion and cracking of the built, affecting the geometrical accuracy and mechanical integrity of the products. To realise a 'first-time-right' high-quality production, a deeper understanding of the residual stress development process through high-fidelity numerical simulations, and therefore, development of residual stress and distortion mitigation strategies are required.  The high computational cost of such detailed simulations is a barrier against their adoption for the real-size components. Typically, gross simplifications at the expense of accuracy and reliability have been taken by the previous research for part-scale analyses.
After re-examining the common assumptions in the high-fidelity thermomechanical simulation (e.g. the employed constitutive model types), this PhD project exploits the power of multiscale modelling and machine learning algorithms to realise reliable component-scale simulations for accurate prediction of distortion and residual stresses in AM components.
