Monitoring of direct energy deposition process using deep-net based manifold learning and co-axial melt pool imaging.
Written by , Di Cui, Annapaola Parrilli, Pushkar Deshpande, Giulio Masinelli, Sergey Shevchik, and Kilian Wasmer.

Outline

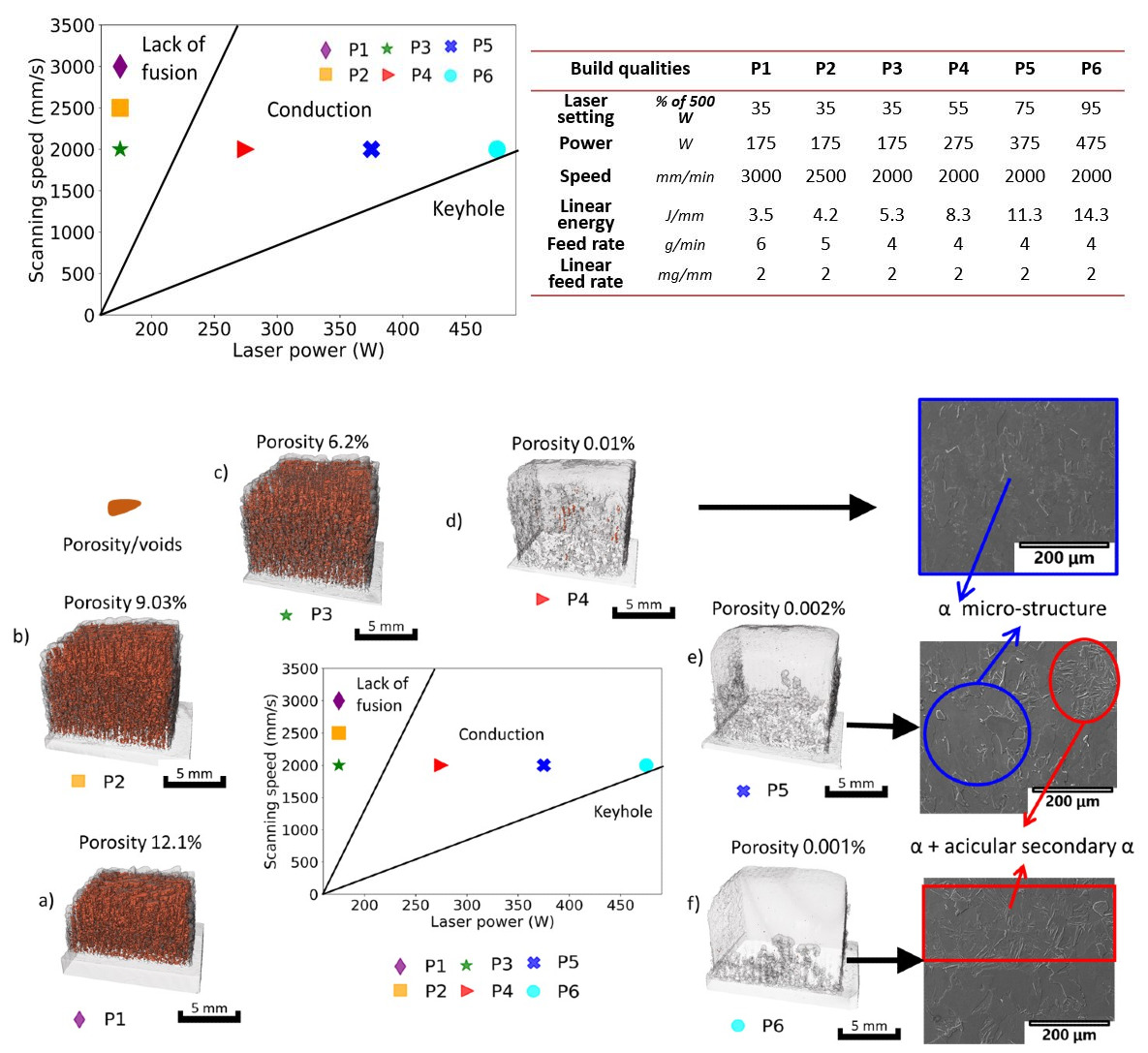

Real-time Artificial Intelligence (AI) based monitoring systems are on the rise as an alternative to post-processing inspection techniques with advances in sensing techniques and Deep Learning (DL). The article focuses on how the manifolds learnt by the embedded space of the two convolutional generative models, such as autoencoder, and Generative Adversarial Networks (GAN), could be exploited to differentiate built conditions. The co-axially mounted CCD camera acquired the melt pool morphology corresponding to six build parameters covering the process map from Lack of Fusion (LoF) to conduction regime. The images acquired from the CCD camera constituted the dataset to train and test the model performance. After training, the latent space of both the networks would have captured the commonality and differences, i.e. unique manifolds of the melt pool morphologies corresponding to the six build conditions. The learned manifolds from the two trained Convolutional Neural Networks (CNN) models were exploited by combining with One-Class SVM to classify the ideal build quality from the other conditions supervisedly. The prediction of the trained One-class SVM on the two latent spaces of the CNN models had an overall classification accuracy of ≈97%. The results on the proposed methodology demonstrate the potential and robustness of the developed vision-based methodology using manifold learning for DED process monitoring.

Reference

Pandiyan, Vigneashwara, Di Cui, Annapaola Parrilli, Pushkar Deshpande, Giulio Masinelli, Sergey Shevchik, and Kilian Wasmer. "Monitoring of Direct Energy Deposition Process Using Manifold Learning and Co-Axial Melt Pool Imaging." Manufacturing Letters 33 (2022): 776-785.

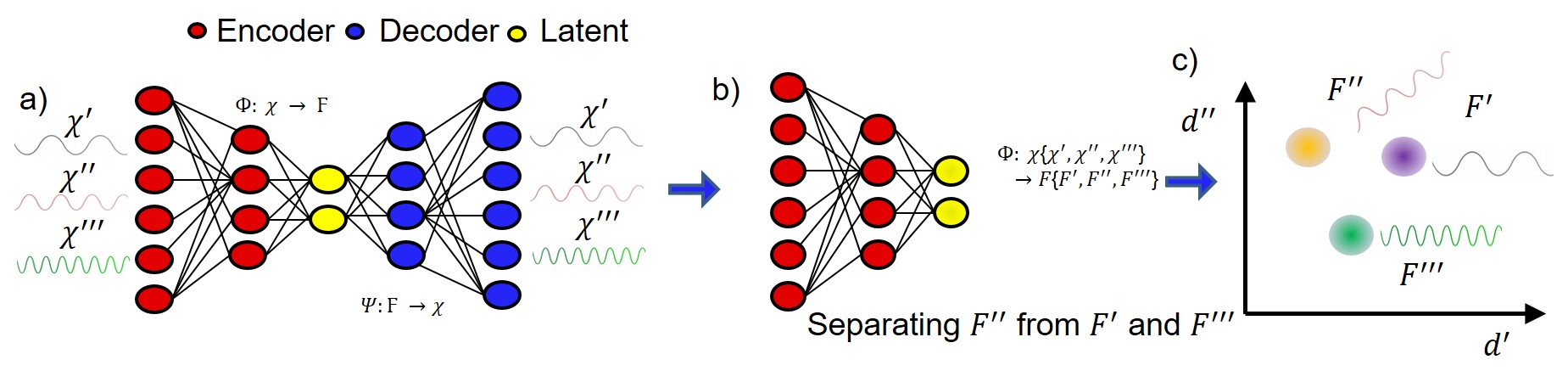

Graphical abstract

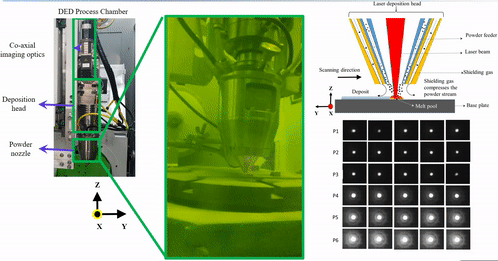

Experimental setup

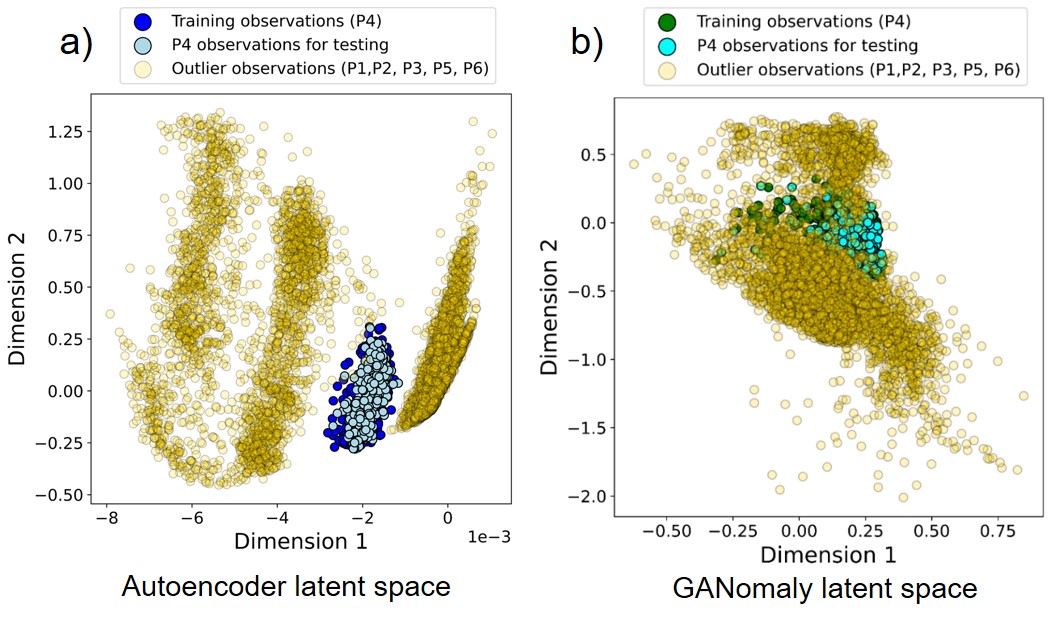

Results

Supplementary data

https://c4science.ch/diffusion/11895/
