Quantum Magnetism

Exotic magnetic states in miniature dimensions


Led by scientists at Empa and the International Iberian Nanotechnology Laboratory, an international team of researchers from Switzerland, Portugal, Germany, and Spain have succeeded in building carbon-based quantum spin chains, where they captured the emergence of one of the cornerstone models of quantum magnetism first proposed by the 2016 Nobel laureate F. D. M. Haldane in 1983. Published in the journal Nature, the results of the team could have widespread implications in the understanding of low-dimensional quantum magnetism and may contribute toward the emerging field of quantum computing.

Artistic rendering of a triangulene quantum spin chain adsorbed on a gold surface and probed with the sharp tip of a scanning tunneling microscope. While each triangulene unit has a total spin of 1, quantum correlations in the chain lead to spin fractionalization, such that the terminal triangulene units exhibit a spin of ½. Image: Empa

We are all used to the idea that simpler units in nature interact to form complex structures. Take, for example, the hierarchy of life, where atoms combine to form molecules, molecules combine to form cells, cells combine to form tissues, and so on, ultimately leading to the formation of complex organisms such as humans. In the quantum world, however, this process may play in reverse, where interactions between two complex objects lead to the emergence of simpler species.

Quantum magic: sawing quantum magnets in half

All elementary particles have a ‘spin’, a fundamental property that governs their interaction with magnetic fields. Spins are quantized, which means they can only assume discrete values. Electrons have the smallest possible spin that can take two discrete values, while the next simplest systems are those whose spin takes three discrete values – these are dubbed spin ½ and spin 1, respectively. In the 1980s, it was predicted that a one-dimensional chain of interacting spin 1 units should be ‘fractionalized’, such that the terminal units of the chain behave, counterintuitively, like spin ½ objects. Therefore, much like magicians who seem to saw a person in two halves and pull them apart, quantum correlations in the chain divide a spin 1 in two spin ½ entities.

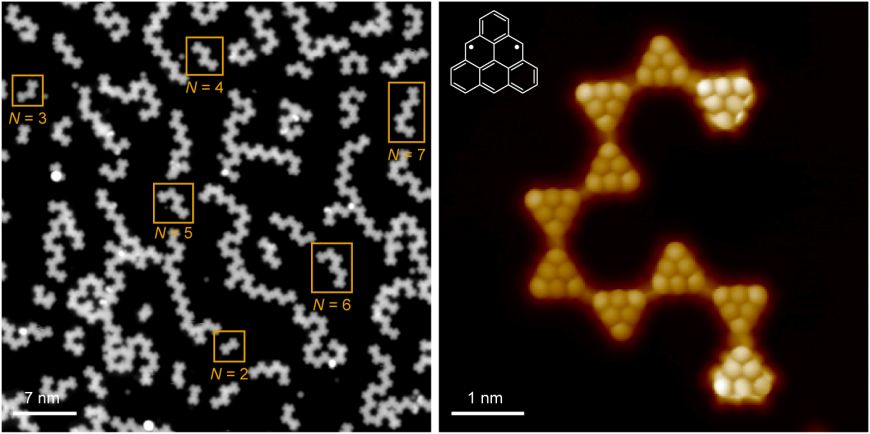

Left: Overview scanning tunneling micrograph of a sample containing triangulene quantum spin chains, where chains containing between two to seven triangulene units are highlighted. Right: High-resolution scanning tunneling micrograph of a ten unit-long spin chain, where the constituent triangulene units are clearly resolved. Additionally, the larger tunneling current over the terminal triangulene units that leads to their brighter appearance is due to spin-½ excitations at the chain termini. The chemical structure of triangulene is shown in the inset. Image: Empa
One-dimensional magnetic chains assembled from molecules

Testing this prediction in a laboratory has been challenging for various reasons, chief among them being that conventional materials are not one-dimensional. While indirect evidence of spin fractionalization has been seen in crystals of organometallic chains containing transition metal ions, a direct observation of the phenomenon has remained elusive.

Now, an international team of researchers has found a remarkable route to accomplish this feat. Combining organic chemistry and ultra-high vacuum surface science, the team fabricated chains of a triangular polycyclic aromatic hydrocarbon with spin 1, known as triangulene. Using a scanning tunneling microscope the team then probed magnetic excitations of these spin chains on a gold surface. They found that beyond a certain length, the terminal triangulene units of the chains exhibited Kondo resonances – which are a characteristic spectroscopic fingerprint of spin ½ quantum objects in contact with a metal surface.

Empa researchers Shantanu Mishra, Pascal Ruffieux and Roman Fasel (from left to right) at an ultra-high vacuum facility for the preparation of triangulene spin chains. Image: Gian Vaitl / Empa
From chains to networks – and to quantum computers?

The researchers are convinced that easily and directly accessible molecular spin systems exhibiting strongly correlated behavior of electrons will become a fertile playground for developing and testing new theoretical concepts. In addition to exploring linear spin chains, the scientists are also focusing on two-dimensional networks of quantum magnets. Such spin networks are a promising material platform for quantum computation.
