Artificial intelligence in materials science

Search engine for «smart wood»

Jul 23, 2018 | RAINER KLOSE

Mark Schubert modifies wood properties with the aid of the enzyme laccase. However, the search for suitable ingredients is complex – a bit like trying to find the key to an unknown lock. Instead of long, expensive series of experiments, Schubert uses artificial intelligence as it gets him to the goal more quickly.

/documents/56164/4789247/Smart+Wood+Stopperbild/d5629974-b41a-4b7a-955b-1c124e0890ac?t=1532347526740
The enzyme laccase is able to alter the chemical structure of wood on its surface and thus facilitate biochemical modifications without changing the structure of the material. However, there are different laccases – and they don’t all work in every case. Image: Thordis Rüggeberg

The enzyme laccase is able to alter the chemical structure of wood on its surface and thus facilitate biochemical modifications without changing the structure of the material. By attaching functional molecules, Empa researchers develop waterproof or antimicrobial wood surfaces, for instance. Also it is possible to make adhesive wood fibers, which can be pressed to fiberboards without any chemical binding agents. These solvent-free fiberboards are used for insulation of eco houses.

The problem: There are many variants of laccase, which differ in the architecture of the chemically active center, and not all of them react with the desired substrate. As it is extremely difficult to predict whether or not a particular laccase will react with a specific substrate, costly and time-consuming series of experiments are required to identify suitable laccase-substrate pairs. Molecular simulations could solve the problem: You simply need a precise structural analysis of the laccase to simulate the chemical reaction mechanism for every desirable combination on the computer. However, this requires a high computer computing capacity and, even then, would be extremely time-consuming and expensive.

But there is a shortcut: «deep learning.» A computer program is trained to recognize patterns with data from the literature and own experiments: Which laccase oxidizes which substrate? What might be the best conditions for the desired chemical process to take place? The best thing about it: The search works even if not all details about the chemical mechanism are known.

Major progress in the last seven years
/documents/56164/4789247/Laccase-Chemie_e/5f9f8514-9682-4ed1-a751-583b13a8a70f?t=1533290345634

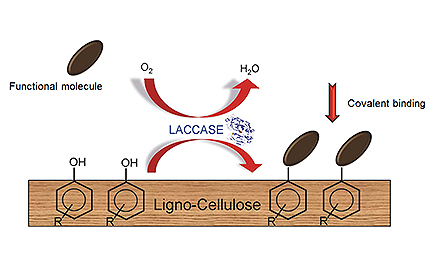

How laccase alters the surface of the wood: A desired molecule is bound to the cellulose in the wood chemically with the aid of the enzyme. Graphic Empa

The availability of the data in a suitable form and the architecture of the deep-learning network are crucial for this to succeed. Schubert has already been working with neuronal networks for over seven years. His first project on the topic stems from 2012, the latest from 2018. «In the past, we worked with shallow neuronal networks: an input layer, a hidden layer and an output layer. Today, we work with considerably more complex networks. They contain several hidden layers and are so much more powerful.»

Schubert trains his algorithms with known datasets and tests them with datasets that the system has never seen before. And his reports on the robustness of his «smart wood search engine” are astonishing: In the past, he was only able to use carefully selected, meaningful data to achieve decent results. Meanwhile, he is also testing his systems with partly unusable data piles. The machine recognizes what it can use and what not.

Industrial application of KI

The system’s robustness already enables the deep-learning machine to be used by industry. Self-adhesive insulation boards are produced at the partner company Pavatex, which Schubert has been working with for some time. The production process is full of sensors; enormous amounts of data accumulate that tell us «something» about the quality of the manufactured boards. Only what? Schubert’s smart wood search engine finds the connection.

The researcher is currently working on optimizing the production in this way. If something goes awry at one point in the fiber processing, the production should be adjusted before the quality of the final product is affected. This saves costly checks on the end product and can slash the error rate in the production process.
Further information

Dr. Mark Schubert
Applied Wood Materials
Phone +41 58 765 76 24
mark.schubert@empa.ch


Editor / Media contact

Follow us on Social Media


Focus machine learning


























Artificial intelligence will change our lives in the coming years – just as dramatically as the triumphant advance of smartphones. New opportunities are also opening up in materials research. Empa scientists use self-learning systems to process the pinpointed chemical modification of wood, blast rocks with electrical charges and monitor the quality of 3D-printed metallic workpieces – while they are being produced. In this issue of EmpaQuarterly you will see how “machine learning” works in general and what it can achieve especially in the field of materials science. Empa Quarterly # 61 / 2018
