Empa partner in EU project "ELENA"
Creating the tiniest structures on surfaces
Nanotechnology is regarded as the key technology of the 21st century, delivering the fundamental methods, which allow objects just a few hundred nanometers in size to be produced in any required shape. These objects find applications practically everywhere – be it for microprocessors and electrical circuits in computers, in the telecommunications industry, or in medicine and biotechnology – to name just a few. To encourage the development of new manufacturing processes the EU recently established the Marie Curie Training Network "ELENA" (low energy electron-driven chemistry for the advantage of emerging nanofabrication methods). Empa is one of the project partners, together with 13 universities, three research institutes and five industrial partners, drawn from a total of 13 countries.
The aim of this large-scale project is to provide training for young European scientists in the field of nanotechnology so that they can generate the innovative ideas necessary to further research and scientific exploitation, so enhancing Europe’s international competitivity. The network is led by Oddur Ingólfsson of the Icelandic University in Reykjavík, Empa’s representative is Ivo Utke from the Mechanics of Materials and Nanostructures laboratory in Thun.
Empa was already involved in the predecessor project to "ELENA", the COST-Action Network "CELINA" (chemistry for electron-induced nanofabrication), where it worked closely with some of the universities now participating in the current project. The aim of "CELINA" was to investigate the suitability of low volatility materials for directly writing with focused electron beams using a gas injection system (developed in-house) with a scanning electron microscope.
Over the coming four years the EU will make available about €4 million for ELENA. Two state-of-the-art nanotechnology processes are the focus of the network: Focused Electron Beam Induced Deposition, (FEBID) and Extreme Ultraviolet Lithography (EUVL).

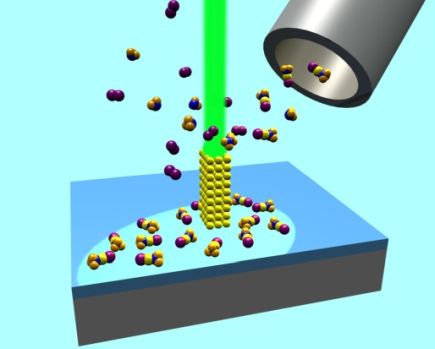

Writing extremely fine structures in three dimensions
Imprinting functional materials

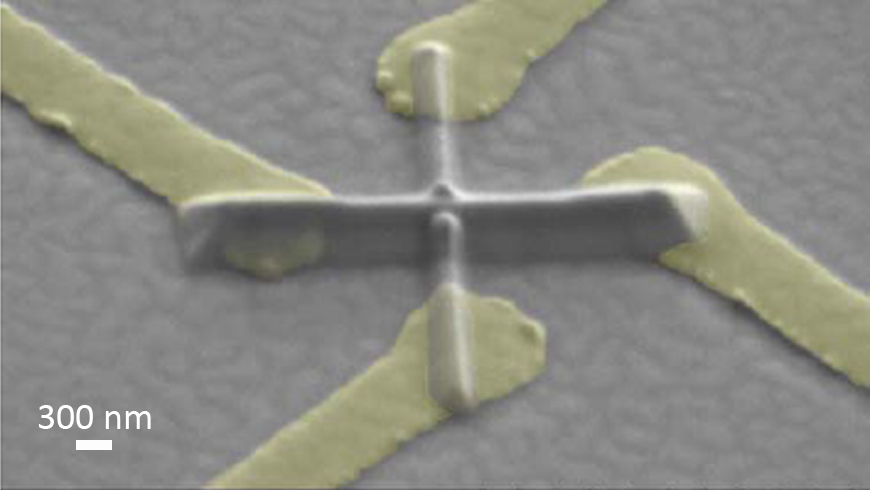

In the course of the ELENA project material scientists, chemists and physicists will work together to develop and test molecules which are suitable for the FEBID technique. This process has been the subject of research at Empa for the past 10 years or so and has already been successfully applied to writing magnetic sensors with the highest lateral magnetic resolution. For this purpose the Empa researchers used the Co2(CO)8 molecule, which allowed them to write a granular cobalt compound with special magnetic properties in a carbon-containing matrix on a silicon oxide layer between several gold electrodes. Another application has been realised in the area of nanophotonics: the initial substance, gold Me2Au(tfa) was used to write an optical lattice on a vertically-cavity surface emitting laser in a minimally invasive manner.
The EUVL technique also imprints extremely fine structures on surfaces, although it is limited to two dimensions. Specially adapted materials are also necessary for this process to function correctly, in this case thin films known as photoresists. When these films are irradiated with EUV light in the appropriate way they efficiently and precisely create the required structures.
The search for new molecules for additive writing on pure metals using FEBID, and new photoresists for EUVL is at the focus of the research efforts of a total of 15 outstanding doctoral students working on the ELENA project. Ivo Utke’s group, with two postdocs and three PhD students, is testing possible ways of controlling the deposited components of the absorbing molecule as a function of the intensity of the electron beams and molecule flows in a scanning electron microscope.
-
