Joint Workshop with the US Federal Highway Administration at Empa

Empa Know-how Used to Monitor Bridges

11 sept. 2007 | MICHAEL HAGMANN
The timing is purely coincidental – the meeting between a delegation from the US Federal Highway Administration (FHWA), the American national governmental body responsible for major roadways, and the European civil engineering and bridge construction experts at Empa was planned long before the collapse of the bridge over the Mississippi river in Minneapolis on 1st  August. The American experts are here to work out with their European counterparts the basics of a long-term monitoring program for some 600 US bridges. Empa specialists are presenting their latest results on the wireless monitoring of bridges as well as strengthening measures on damaged or ageing supporting structures.

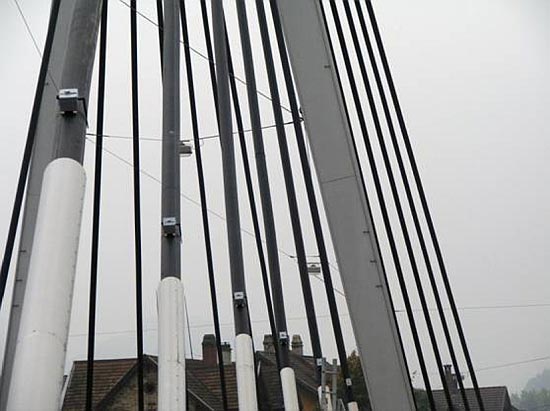

Caption: The Empa remote monitoring system on the Stork Bridge in Winterthur. The wireless system transmits changes in the measured data via radio or the internet directly to the institution..


How can we avoid bridge collapses like the one which occurred in Minneapolis? How can we make our bridges safer? These are the questions which the eighteen or so experts in this field are discussing at the meeting being held at Empa from 11th to 13th September. As spot checks have demonstrated, the state of health of many American bridges is not what it might be. The FHWA has been given the task of putting together a long-term monitoring program, the Long-Term Bridge Performance Program (LTBP). The aim is to investigate and monitor 590 representative bridges in various regions of the USA.

Size: 45 KB
Sensors developed by Empa which are used in the remote monitoring system on the Stork Bridge in Winterthur

Wireless long-term monitoring of a bridge in Winterthur

During the meeting the participants will pay visits to several bridges, such as the Salginatobel Bridge in the Praettigau region of Switzerland (designated a “World Monument”), and the Stork Bridge near the main railway station in Winterthur. About a year ago the latter was fitted with a total of seven Empa-developed sensors which monitor the structure and will raise an alarm at Empa over a radio link or internet connection if strong vibrations or other unusual motion is detected.


The advantage of this remote surveillance system is that it is relatively economic because the sensors operate wirelessly, so obviating the need for complicated and expensive wiring on the bridge structure. “No one else in the world has as much experience in long term bridge monitoring as Empa has,” says Masoud Motavalli, head of the institution’s Engineering Structures Laboratory. “If the US representatives believe that our technology is suitable for their needs, then it could very soon be used in the LTBP,” he adds.

Size: 57 KB
A bridge pier reinforced with CFRP tape is subjected to compressive, tensile and bending loads during tests in the Empa Building Hall.

Rejuvenating weak, ageing bridges with carbon fiber reinforced polymers

In addition, Empa scientists are presenting the latest developments in the field of building structure reinforcement at the meeting. In Empa’s Building Hall they are, among other things, investigating the stability of bridge piers with and without the support of “sticking plasters” made of high-tech carbon fiber reinforced polymers (CFRP). The bridge piers are wrapped in CFRP tape and then subjected to varying types of load – compression, tension, bending and so on, until the piers fracture. This happened at significantly higher loads in the case of the CFRP-treated components compared to the untreated ones. “In contrast to classical reinforcing elements made of steel, CFRP is corrosion resistant and very light, which makes installation very much easier,” explains Motavalli.


Technical Information:
Prof. Masoud Motavalli, Engineering Structures Laboratory, Tel. +41 44 823 41 16,

Nondestructive Evaluation of Stay Cables

Cable supported structures look elegant and slender thank to their special design. The question that goes through the mind of many users is what the condition of the cables is. Especially in the case of large diameter cables, the options for an inspection method are very limited. Six years ago, Empa demonstrated that the free length of such cables can be inspected thoroughly, reliably and at a reasonably fast pace by using magnetic inspection methods. In a new inspection campaign, some stays of the new Strelasund crossing near Rügen were inspected.

In the laboratory the guests were shown in a demonstration using a short cable section, how the inspection device works and how it can be complemented by the ultrasonic inspection of the anchorage areas. Together with DMT GmbH (Germany), Empa is now developing a new generation of testing devices. The goal is to increase the efficiency of the inspection and to open new market segments.
